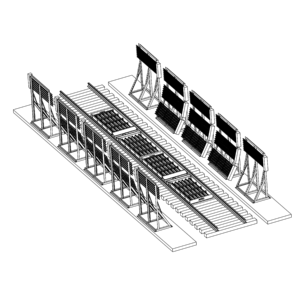

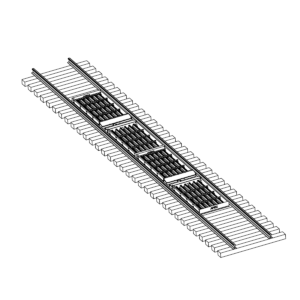

Complete System Examples

These complete system examples illustrate several common heater configurations and placement options. The quantity and positioning of the heaters are carefully engineered to achieve the required throughput in the most cost-effective manner. While these examples represent common configurations, every system is tailored to the specific application based on railcar type, environmental conditions, material moisture content, and other operating factors.
